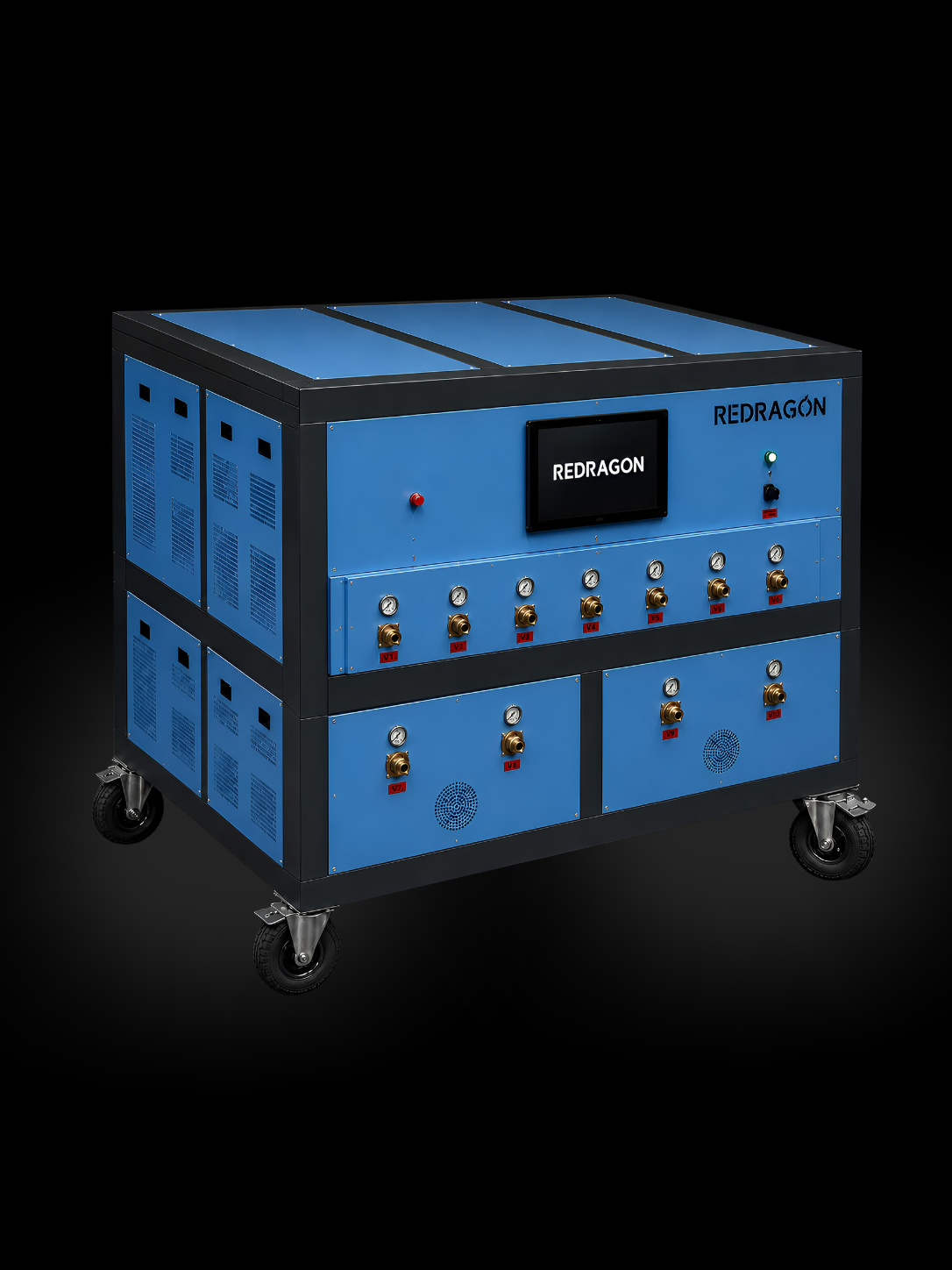

Multi-Point GIS Gas Handling & Testing System
Product Model :- Muti-Point GIS Gas Handling & Testing System
Automation Level :- Fully Automatic
Coupling Interface :- REDRAGON DN20/DN40 Coupling
Storage Tank Capacity :- Configurable upto 5000 Ltr
Maximum Operating Pressure :- 50 bar
Input Power Supply :- AC 400 V, 3-phase, 50/60 Hz
Technical Specifications
Specifications
Operating Mode
Fully Automatic
Control System
PLC & SCADA-Based Industrial Control System
Simultaneous Gas Operations
Recovery, Evacuation, Refilling & Gas Quality Verification
Oil-Free Compressor
Oil-Free High-Efficiency Compressor, Capacity up to 66 m³/h
Vacuum Compressor
High-Capacity Oil-Free Vacuum Compressor, Capacity up to 100 m³/h
Vacuum Pump
Rotary Vane Vacuum Pump, Capacity up to 360 m³/h
Gas Connections
REDRAGON DN20 / DN40 Self-Sealing Couplings
Gas Purification
Moisture, Particle & Decomposition Product Filtration
Gas Quality Analyzer
Integrated SF₆ Purity Analyzer
Communication
Ethernet & USB
Power Supply
415 VAC, 3 Phase, 50 Hz
Mobility
Ø305 mm Heavy-Duty Pneumatic Wheels with Roll-Over Protection
